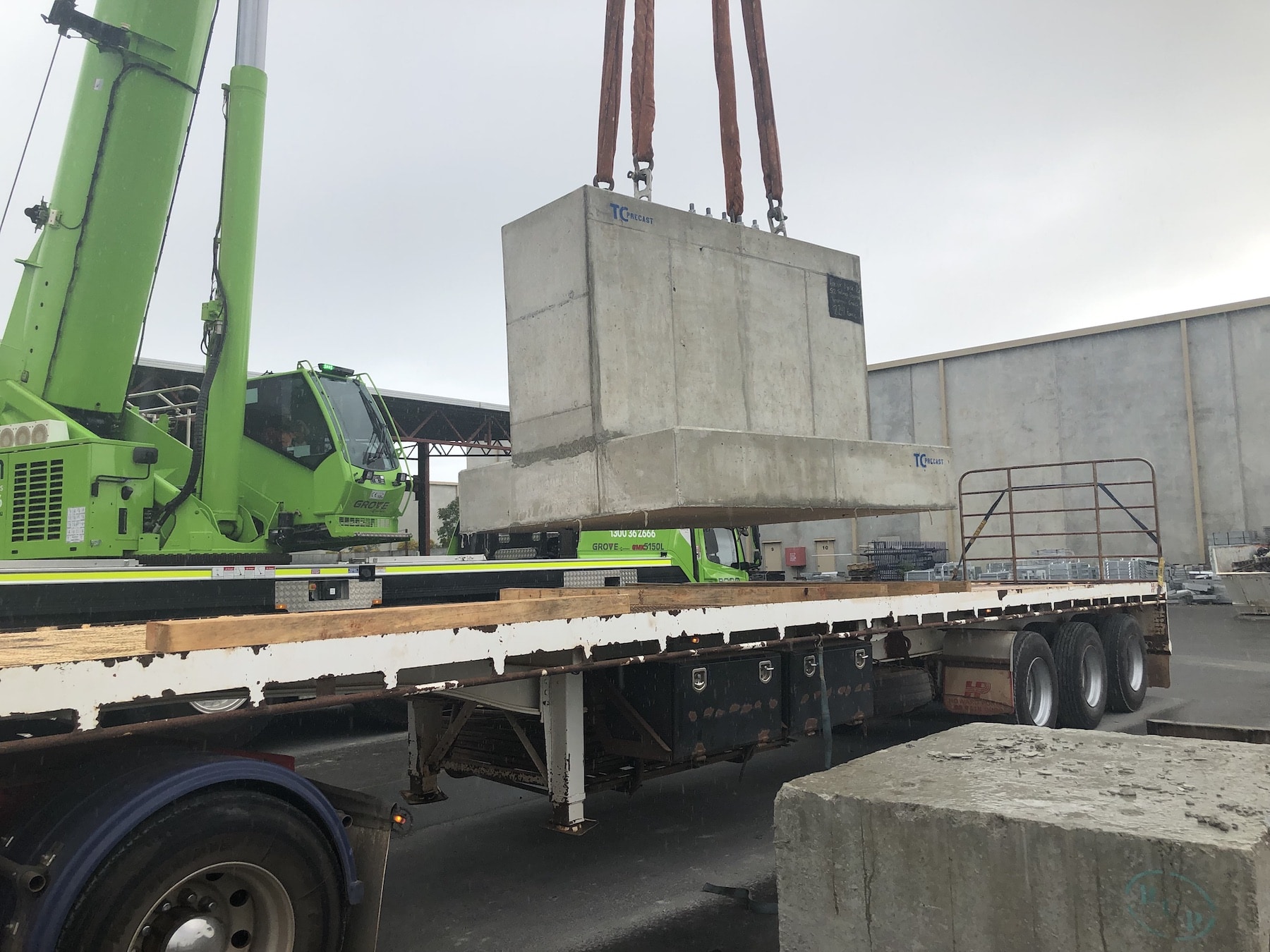

We recently completed a job for Fortescue Metals Group which involved casting the largest structures we have manufactured to date. Initially designed as cast in-situ structure, we proposed to precast the blocks to allow a quick turnaround with less on-site work required.

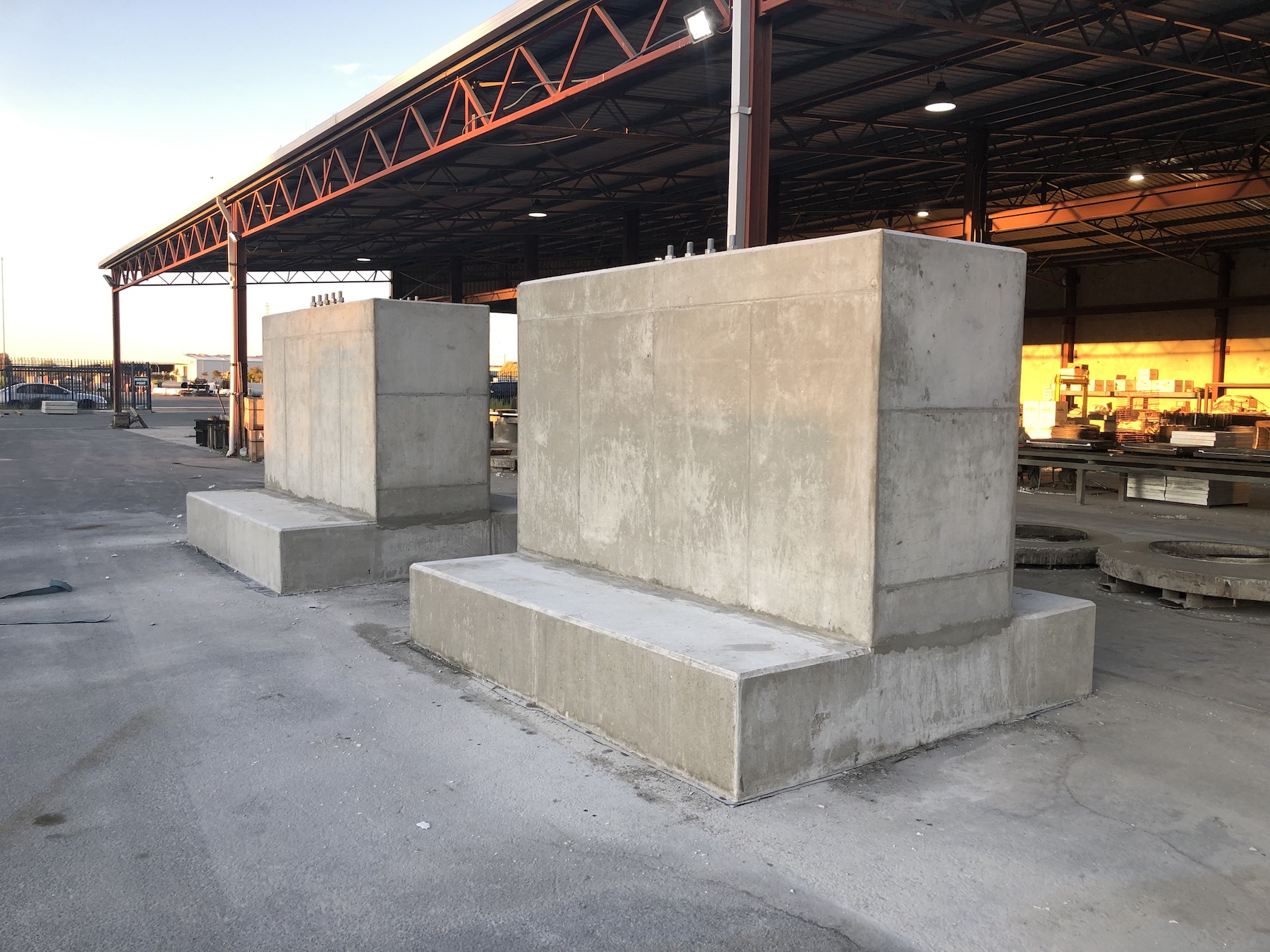

The project consisted of 2 Pipe Anchor Blocks, 3000mm long x 2500mm wide x 2250mm high and had to be completed in a very tight time frame with each block cast in two stages.

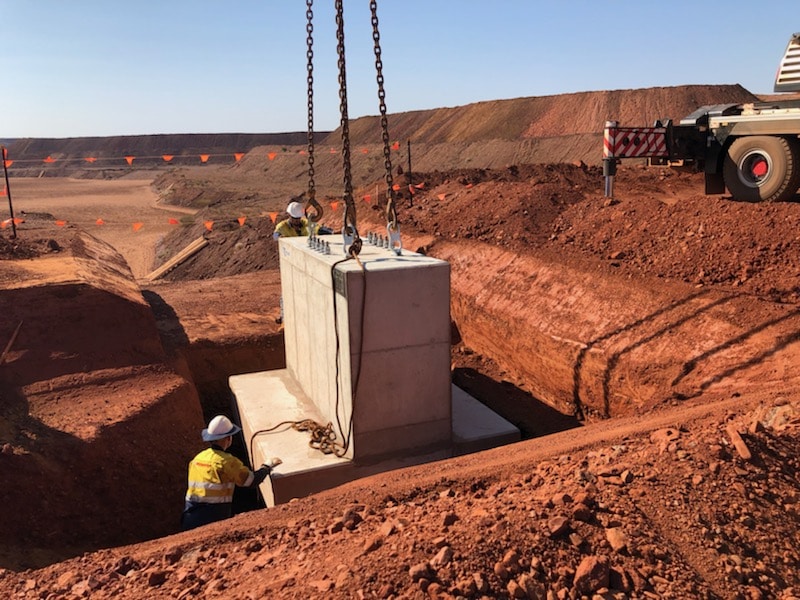

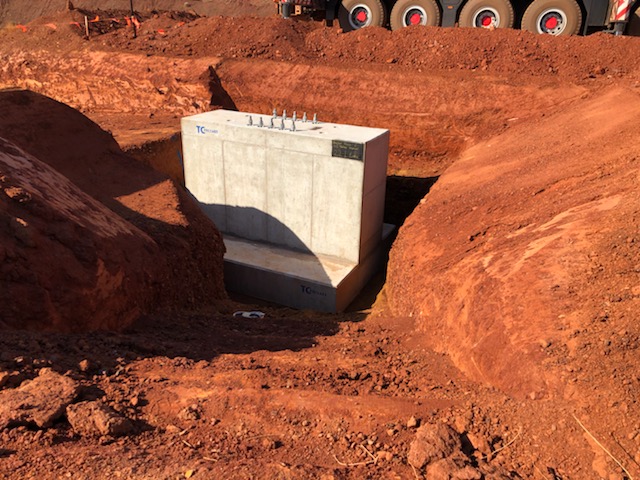

Each block weighed 22 tonnes and included 10 off 36mm diameter hold down bolts placed within 5mm tolerances Installed at Christmas Creek for Fortescue Metals Group.

Client:FMG
